In general, the treatment for the lesion with the diameter of 1.0-1.5cm can be completed by one needle(1cm tip), but it is required for multiple needles treatment for the lesion with the diameter of>2cm, in order to achieve the goal of completely inactivation of tumor cells.



Watts-controlling mode:

The setting time is 5 minutes.

Unipolar needle (19G, non-retractable, operating length: 1cm); setting power: 7-10watts, operating until the generator stopped automatically.

Unipolar needle (19G, non-retractable, operating length: 0.5cm); setting power: 5-7watts, operate until the generator stopped automatically.

Monopole needle (19G, operating length: 1cm); setting power: 3-5watts, operating until the generator stopped automatically.

Principle of power selection:

1.use high power and short time ablation for benign tumor.

2.Use low power and longer time ablation for malignant tumors.

Operating note: rotate the electrode needle when the temperature reaches to 100℃, so as to prevent adhesion.



Temperature-controlled mode:

The setting temperature is 99℃, and the setting time is 10 minutes.

Monopoleneedle (19G, non-retractable, operating length: 1cm); setting power: 20-25watts, make the corresponding adjustment according to the circumstance of temperature rise.

Monopole needle (19G, non-retractable, operating length: 0.5cm); setting power: 15-20watts, make the corresponding adjustment according to the circumstance of temperature rise.

Bipolar needle (19G, operating length: 1cm); setting power: 7-15watts, make the corresponding adjustment according to the circumstance of temperature rise.

Operating note:

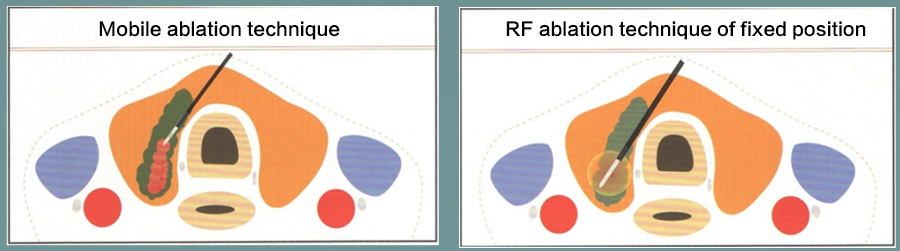

1. Monitor the circumstance of the gas enhancement of the thyroid tumor by B ultrasonic, and move the electrode needle according to the circumstance of the gas enhancement during the operation.

2.Rotate the electrode needle when the temperature reaches to 100℃, so as to prevent adhesion.
